Nano V3.0 with ATMEGA328P and USB-C

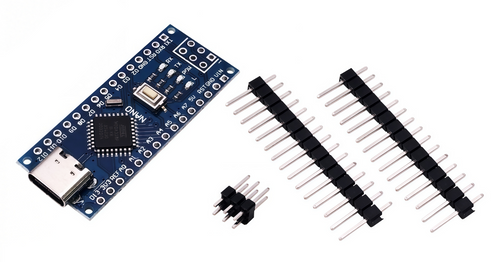

This is an Arduino-compatible Nano V3.0 development board. It features the 328P microcontroller from AVR and a CH340 USB bridge. The package includes 2 single-row pin headers as well as a 6-pin dual row header. These headers can be installed on the top or bottom side of the board (To use with the GG-DIY-PA1 breakout board, the single-row pin headers have to be soldered to the bottom of the Nano.)
Please note that the Nano V3 is available with 2 different microcontrollers (328P or a 328PB). This product is the 328P version. See images for the main differences in specifications.
The board features a USB-C jack. A suitable short USB cord (from regular USB-A to USB-C) is available separately: Gringo Gadgets GG-TLS-UC4
A breakout board is also available, Gringo Gadgets part # GG-DIY-PA1
- MCU: ATMEL 328P
- Pins: 30+6
- Pitch: 0.1 "
- Prog. Memory Size: 32 kBytes
- Prog. Memory Type: FLASH
- Voltage: 5 VDC
